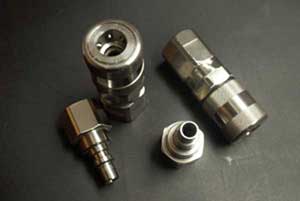

Quick Disconnect Couplings
-Pressures to 60,000 PSI
-Stainless Steel Construction
-Full Flow Coupler Check Valve
| Series |
Style |
Port Size |
Port Type |
| 300 |
02 |
09 |
MPF |
| |
|
|
|
200=20,000 PSI
(1" MP Max. Port) |
01=non-valved coupler |
04=1/4" |
MPF=Medium Pressure Female |
300=30,000 PSI
(9/16" MP Max. Port) |
02=non-valved coupler |
06=3/8" |
MPM=Medium Pressure
Male |
600=60,000 PSI
(9/16" MP Max. Port) |
03=non-valved nipple |
09=9/16" |
HPF=High Pressure
Female |
| |
04=non-valved nipple
200,300 series
only |
12=3/4" |
HPM=High Pressure
Male |
| |
|
16=1" |
M=Type M Male |
| Seal Option |
| Blank=Std. urethane |
| (200 & 300 series only) |
| Check Valve Option |
| Blank=metal seat |
| S=Soft seat | |
