TUBE END FORMING

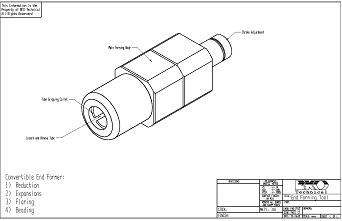

Convertible Tube End Former
![end former end former](/images/xCEF,P20Tool.gif.pagespeed.ic.XGpukuDnH5.png)
-
EXPANSIONS
- REDUCTIONS
- FLARES
- BEADS
The compact self contained design of the forming head allows for easy operation. It is made from heat treated stainless steel for use with a 3,500 PSI hydraulic pressure.
The head has tapped holes to allow it to mount remotely in a convenient location within the work cell. Converting the forming head is quick and easy and allows the end former great versatility.
The form tooling is made from tool steel and hard coated for extended forming life.
CONVERTIBLE END FORMING HEAD
![END FORMER END FORMER](/images/EF-HPU.JPG)
Hydraulic Power Pack
The BKO convertible end former is designed with hydraulic actuated gripping collets along with hydraulic actuated form tooling.
A 3,500 PSI electric powered hydraulic power unit is the hydraulic source and controlled by a PLC.
A foot switch is used to initiate the end forming cycle. The end of cycle is sensed by an adjustable digital pressure switch eliminating operator error.
The tools stroke is easily adjustable to achieve the exact end form that is required. |
